PSB approved Safety Mark Led Driver 4-7W 8-12W 12-18w 18-24W 280mA 290mA 300mA Constant Current

High Quality Isolated LED Driver Power Supply Adapter for Led Panel Lights.

Constant Current, Reliability Quality comes with 12months Warranty

Input color coded and output DC jack ease of installation and replacement

4 different wattage for you to choose: 4-7W / 7-12W / 12-18W / 18-24W

Mainly use on downlight, surface mount LED lights

Details:

Note: all measurements given are measure by hand. Deviation of (+/-2mm)

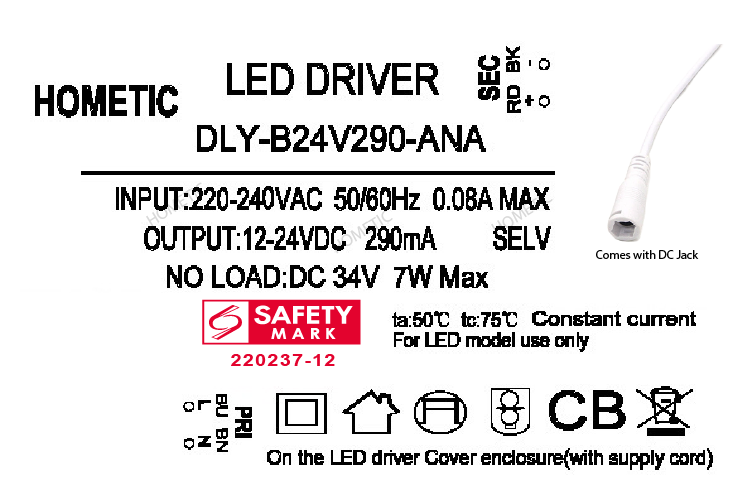

⁘Wattage: 4-7W

⁘Type: Isolation Driver

⁘Input Voltage:AC220~240V / 50Hz

⁘Output Voltage:DC12~24V

⁘Output Current: 290mA±5%

⁘Dimensions:68*32*22mm(L*W*H) (+/-1mm)

⁘Safety Mark: 220237-12

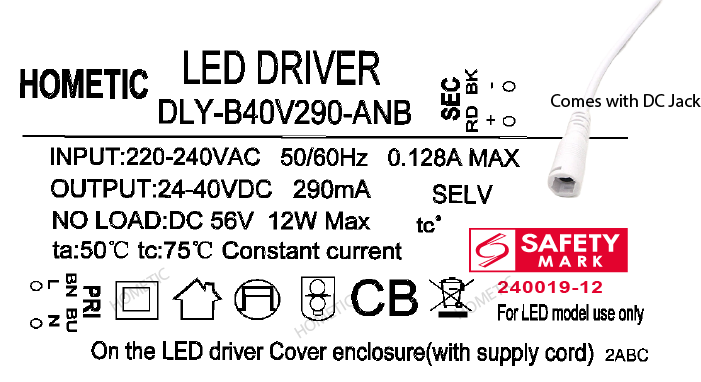

⁘Wattage:7-12W (new 2024 model)

⁘Type: Isolation Driver

⁘Input Voltage:AC220~240V / 50Hz

⁘Dimension: 87*38*25mm(L*W*H)

⁘Output voltage: DC24~42V

⁘Output current: 290mA±5%

⁘Dimension: 87*38*25mm(L*W*H)

⁘Safety Mark: 240019-12

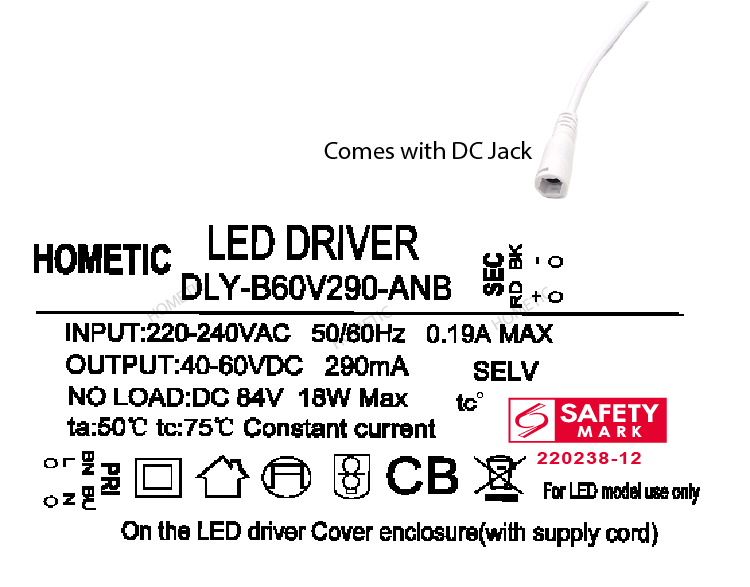

⁘Wattage:12-18W

⁘Type: Isolation Driver

⁘Input Voltage: AC220~240V / 50Hz

⁘Output Voltage: DC46~60V

⁘Output Current: 290mA±5%

⁘Dimensions:88*38*25mm(L*W*H)

⁘Safety Mark: 220238-12

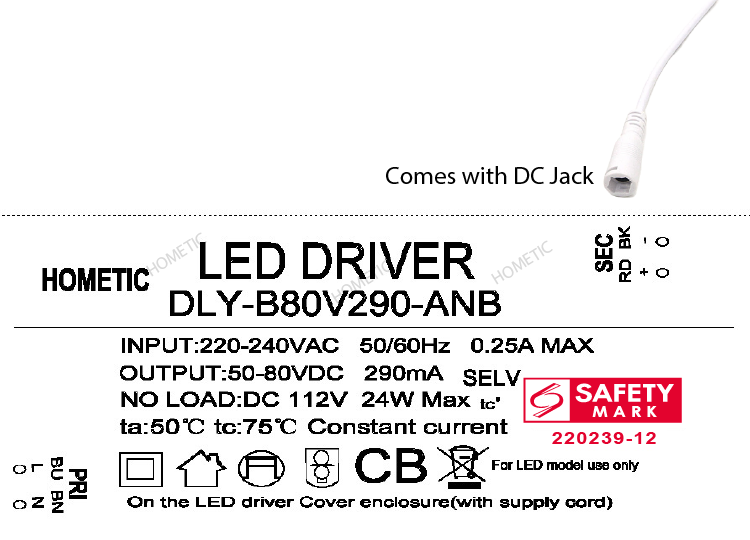

⁘Wattage:18-24W

⁘Type: Isolation Driver

⁘Input Voltage: AC220~240V / 50Hz

⁘Output Voltage: DC50~80V

⁘Output Current: 290mA±5%

⁘Dimensions:104*41*25mm(L*W*H)

⁘Safety Mark: 220239-12

*Warranty Coverage T&C as follow:

Warranty is considered out-of-scope when one or more of the following situations occur:

1）The driver/LED suffers damage because of improper operation or improper assembly

2）Improper application or integration with other LED Light not compatible

3）Disassembly of driver/LED by the end-user

4）Severe damage or deformation of the driver’s/LED appearance

5）Damage to the driver’s input or output wires

6）Driver’s/LED identification codes or serial numbers erased, altered or damaged

7）Damage to the driver/LED caused by natural disasters

All warranty coverage are to be send back to seller, shipping fees incur be borne by buyer.
